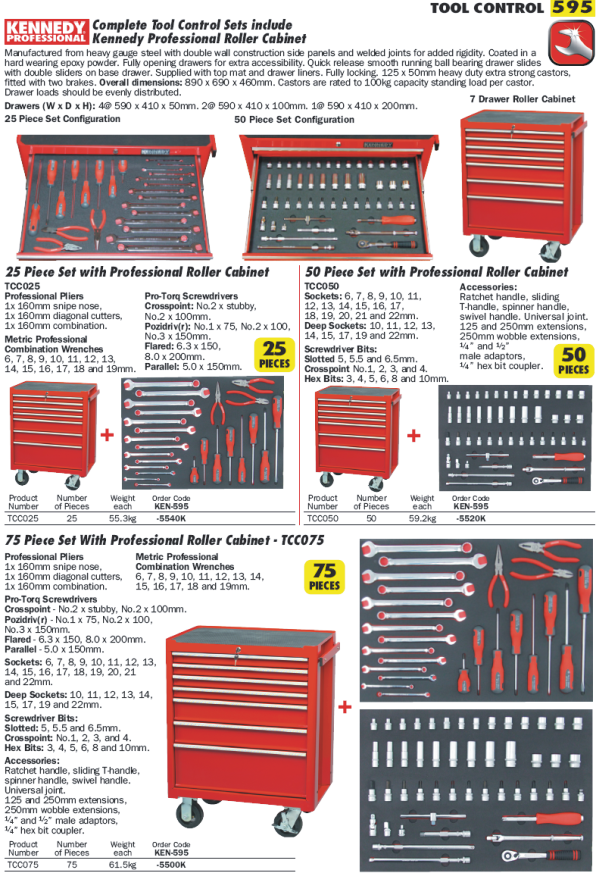

Tool Control  Set

Roller Cabinets and Tool Chest - Kennedy Range

Roller Cabinets and Tool Chest

Mobile Too Cabinet

CNC MILLING Trainer

CNC Milling Trainer With Siemen controller

USB Fully Auto Microscope

Metallography Product for Sample preparation

Get Smart with CNC / Manual Precision Lathe machine

Tools Promotion in 2011

CNC Tool cabinet

Smarturn Lathe -Manual,Motorized and CNC

Pinacho Precision Lathes are manufactured by METOSA, (M/s. Metallurgica Torrent SA) Spain, a company of repute with over 55 years
Experience in Manufacturing Lathes.

They are Europe’s Largest Manufacturer of All Geared Lathes and Horizontal CNC Lathes with over 60.000 installations worldwide.

Highlights:

    - The operators accustomed to working with a manual lathe can work with this system without having any knowledge about CNC.
    - Easy machining operations can be made manually using just the handwheels, as in conventional lathes.
    - A comprehensive choice of semiautomatic cycles is available for more complex shapes, which can be selected through the touch screen.

Including:

    - Complete range of semiautomatic cycles.

    - Profile cycle for external / internal roughing and finishing.

    - External / internal facing.

    - Cylindrical, taper and face threads.

    - Grooving.

    - Drilling and tapping.

    - Tool calibration - capacity for up to 15 tools.

    - Inch or Metric display.

    - Capacity to save upto 40 different operations.

    - Possibility to program cutting conditions (feed, spindle speed, tool) for each cycle.

    - RS - 232 port that can communicate with a PC to store and load cycles.

    - HMI Touch-screen with large graphic icons that guide the operator.

    - Machine is equipped with the CNC unit 0i MATE®, AC motors and drives from FANUC".

    - Variable speed ranges that allow working at high revolutions, including constant surface speed.

Main Options:

    - Automatic speed range change.

    - 4 way indexing quick-change tool post (8 positions).

    - DYFE - EDITOR communication program, that allows to program and execute ISO programs from a computer.

Advantages:

    - Maintains the flexibility, ease of use and handling of a conventional lathe.

    - Allows to produce components of complicated geometries with ease, without the setting of complicated attachments.

    - All type of threads can be produced without having to select any gear.

    - Increased productivity and precision.

    - Reduces the work time for work pieces produced on conventional lathes.

INTERACTIVE GRAPHIC CONTROLThe electronic SMART-turn lathe maintains the ease of use of a manual lathe, provides increased productivity and flexibility by replacing mechanical controls with the latest touch screen numerical control technology. OPERATION:The operators accustomed to working with a manual lathe can work with this system without having any knowledge about CNC. Easy machining operations can be made manually using just the handwheels, as in conventional lathes. A comprehensive choice of semiautomatic cycles are available for more complex shapes, which can be selected through the touch screen. INCLUDING:Operators using manual lathes can use the SMART 6 system without having any CNC experience. Electronic hand wheels are fitted for the operators to handle the machine as on a conventional lathe. Machining is carried out by using a comprehensive choice of semiautomatic cycles selected through the touch screen. MDI mode of ISO programming is also available for more complex operations. • Complete range of automatic cycles. - Profile definition cycle for external/internal roughing and finishing, including graphic preview of the drawn shape in the screen. - External/internal facing. - Cylindrical and taper threads. - Grooving. - Drilling and tapping. • Capacity to save up to 40 different operations that can be linked in a single program makes the machining of complex components fully automatic. • 4 way automatic square toolpost. • LCD Touch-screen of 7.2” with large graphic icons that guide the operator. • Tool calibration – capacity for up to 16 tools. • Inch or Metric display. • Possibility to program cutting conditions (feed, spindle speed, tool) for each cycle. • RS-232 port that can communicate with a PC and PCMCIA slot for memory cards. • Machine is equipped with the CNC unit 0i MATE-TC®, AC motors and drives from FANUC™. • Automatic speed range change, including variable spindle speed with constant surface speed. ISO PROGRAMMING MODE:Possibility to program all type of operations and automatic movements. Capacity up to 64 different offsets for tools. 240 KB memory capacity for programs. ADVANTAGES:• Takes advantage of the possibilities that offers a CNC at the same time that maintaining the flexibility and ease of use and handling of a conventional lathe. • Components of complicated geometries can be machined, without the setting of complicated attachments. • A wide range of threads can be produced without having to preset any gear trains. • Increased productivity and precision. • Full automatic operations give reduced working time and increased productivity. By using the SMART-turn, any operator can gradually familiarize with the CNC for lathes.Pressing one key, the SMART-turn can be handled as a full CNC programmable in ISO. All data for the machining process in one single screen. Easy definition of the tool dimensions. Easy to use wokpiece profile cycle. Complete range of automatic turning cycles: • Profile definition cycle for external/internal roughing and finishing. • External/internal facing. • Cylindrical and taper threads. • Grooving. • Drilling and tapping. Linking of programmed cycles allows complete workpiece machining from start to finish. Different threading methods selection.

Request brochure : esthalontools@gmail.com
